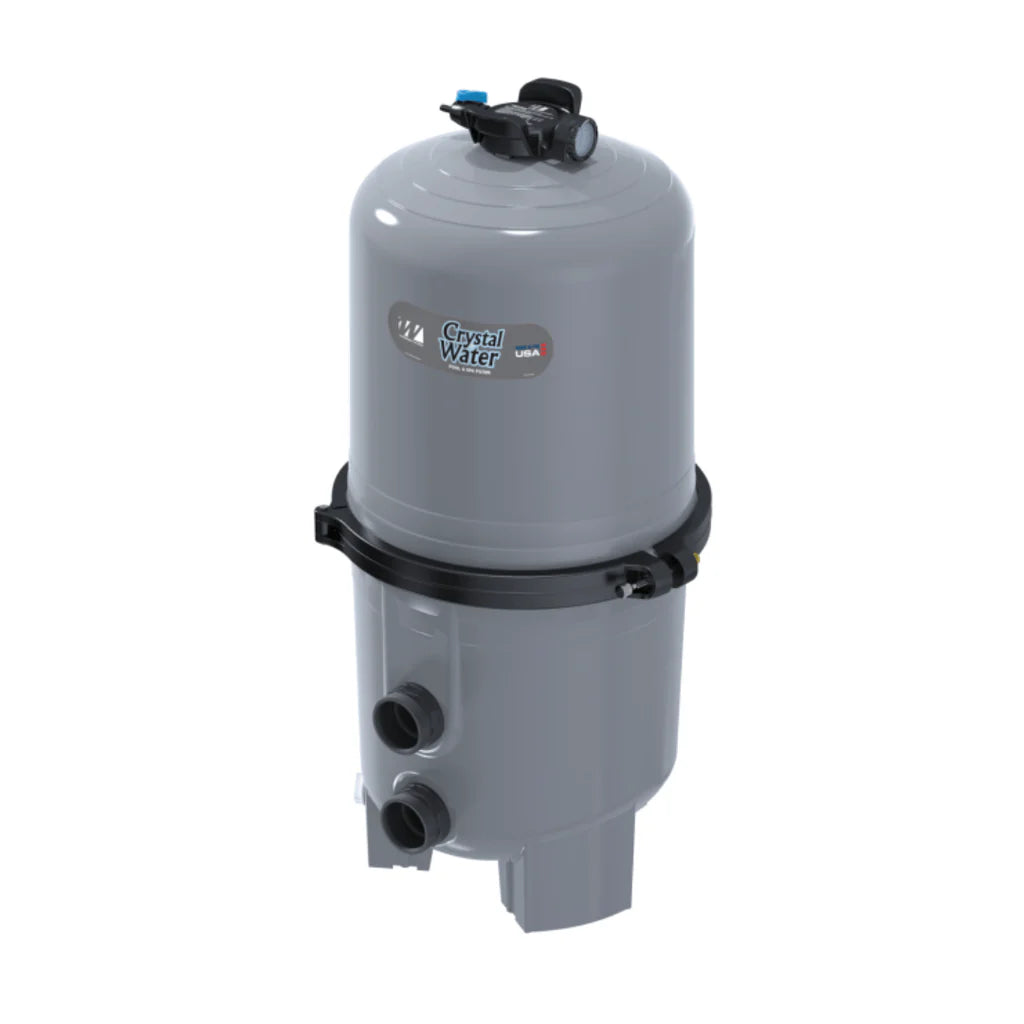

Waterway Crystal Water 60 sf DE Filter | 570-0060-07

The Waterway Crystal Water D.E. (Diatomaceous Earth) Filter is the largest in its series, designed to provide "bottled water" quality for the most demanding inground pools. With a massive 60 square feet of filtration area, the 570-0060-07 model filters out particles as small as 3–5 microns, removing microscopic debris that sand and cartridge filters simply miss. Engineered with a curved vertical grid design, this filter maximizes surface area to provide the longest possible cycles between cleanings while maintaining high-flow efficiency for your entire circulation system.

Features

Maximum 60 sq. ft. Filtration Surface: The extra-large grid capacity allows for superior debris-holding, ensuring your pool stays sparkling clear even during heavy bather loads or high-pollen seasons.

Curved Vertical Grid Design: Specifically engineered to allow D.E. powder to coat the grids evenly, preventing "bridging" and ensuring every square inch of the filter is working at peak efficiency.

Heavy-Duty Fiberglass-Reinforced Tank: The UV-stabilized, chemical-resistant tank is built to withstand the highest residential pressures and the harshest outdoor environments for years of service.

Tool-Free Stainless Steel Clamp: Features a rugged split-nut clamp design that allows for quick, safe access to the internal grids for seasonal deep-cleaning without the need for specialized tools.

High-Flow 2" Internal Piping: Large internal plumbing minimizes flow resistance, which reduces the workload on your pool pump and lowers overall energy consumption.

Integrated Air Relief & Pressure Gauge: Includes a manual high-flow air relief valve and a clear pressure gauge, allowing you to easily monitor filter health and safely bleed air from the system.

Specs
