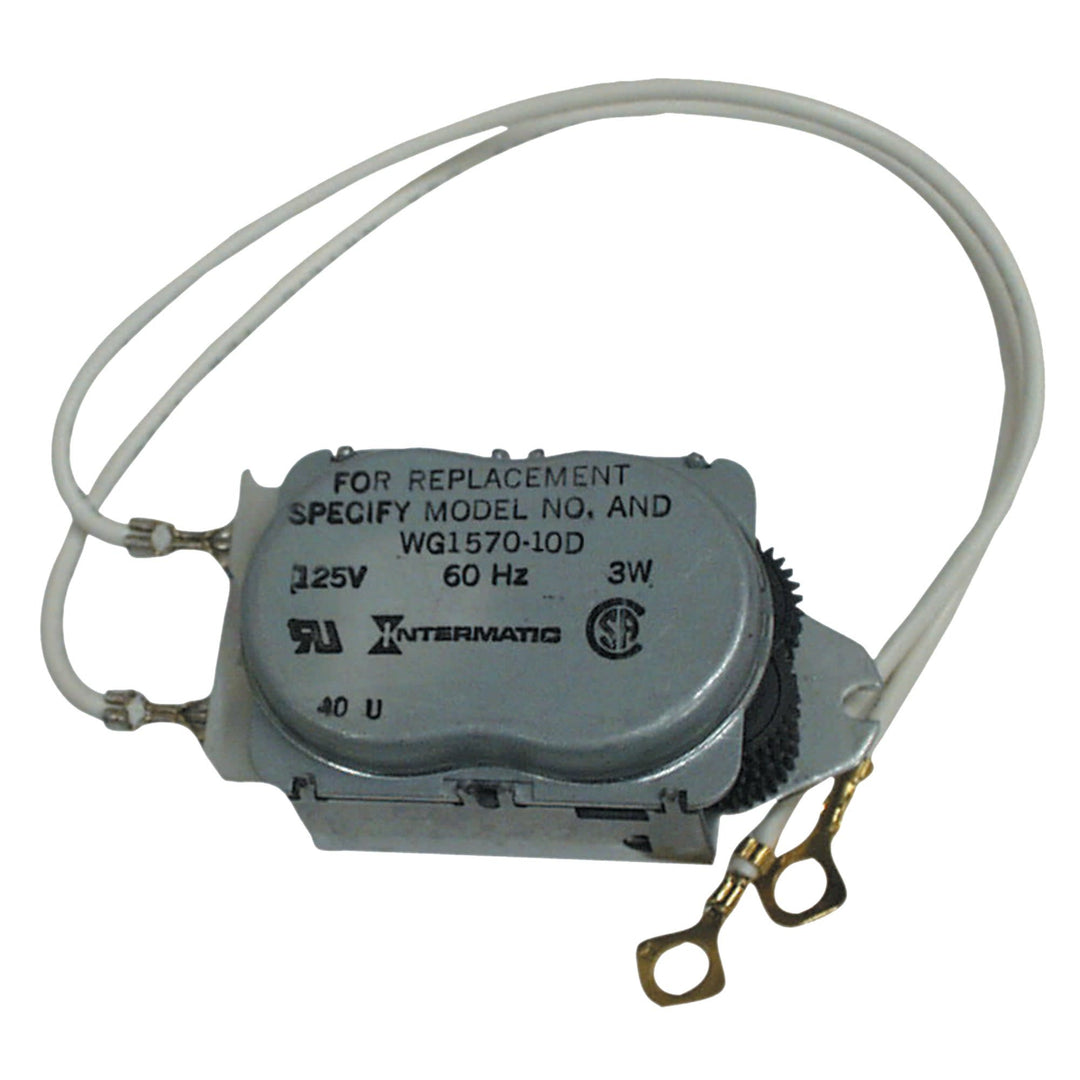

Intermatic 110V–125V Replacement Timer Motor for T100 & T170 Series Time Switches | WG1570-10D
Restore reliable, accurate scheduling to your mechanical pool timer without replacing the entire control mechanism or enclosure with the Intermatic 110V–125V Replacement Timer Motor. Engineered as a direct OEM replacement synchronous drive motor for Intermatic T101, T103, T171, and T173 series 120-volt time switches, this compact component replaces stalled, noisy, or burned-out clock motors in minutes.
Built for continuous-duty outdoor operation inside pool and spa control panels, the motor operates on 110–125V AC at 60 Hz and drives the 24-hour yellow dial gear train smoothly to maintain precise pump filtration and booster schedules. Pre-wired with flexible insulated motor leads and factory-fitted with a precision pinion gear and mounting bracket, it drops cleanly onto the rear of compatible Intermatic mechanisms using existing mounting screws and terminal connections.
Features
Direct OEM Intermatic Replacement: Manufactured to exact factory tolerances to restore original gear engagement and timekeeping accuracy in 120V Intermatic T100, T170, T1400, and WH series time switches.
High-Torque Synchronous Drive: Delivers steady, continuous-duty rotation at 60 Hz to advance heavy-duty mechanical dials and tripper mechanisms reliably through hot summer days and cool autumn nights.
Pre-Wired Flexible Lead Wires: Ships with pre-attached, stripped insulated wire leads that connect directly to the clock motor terminals on the front of the timer mechanism.
Cost-Effective Repair Solution: Allows technicians and homeowners to repair a non-advancing time clock quickly without disconnecting heavy pump load wiring or removing the timer mechanism from the cabinet.
Broad 110V–125V Compatibility: Rated for standard 110V to 125V AC, 60 Hz residential pool circuits, fitting popular single-pole and double-pole 120V models including T101, T101M, T103, T103M, T171, and T173.
Specs
| Product Type | Replacement Electromechanical Time Switch Motor |
| Operating Voltage | 110V–125V AC, 60 Hz |
| Compatible Timer Series | Intermatic T100, T170, T1400, T100-20 & WH Series (120V Models) |
| Common Compatible Models | T101, T101R, T101M, T103, T103R, T103M, T171, T173, WH40 |
| Motor Type | Synchronous Continuous-Duty Clock Motor |
| Electrical Connection | Pre-Attached Flexible Wire Leads |
| Mounting Style | Direct Rear-Mechanism Bracket Mount |
| Safety Certifications | UL Recognized / CSA Certified |
| Manufacturer | Intermatic |
| Part Number | WG1570-10D |
