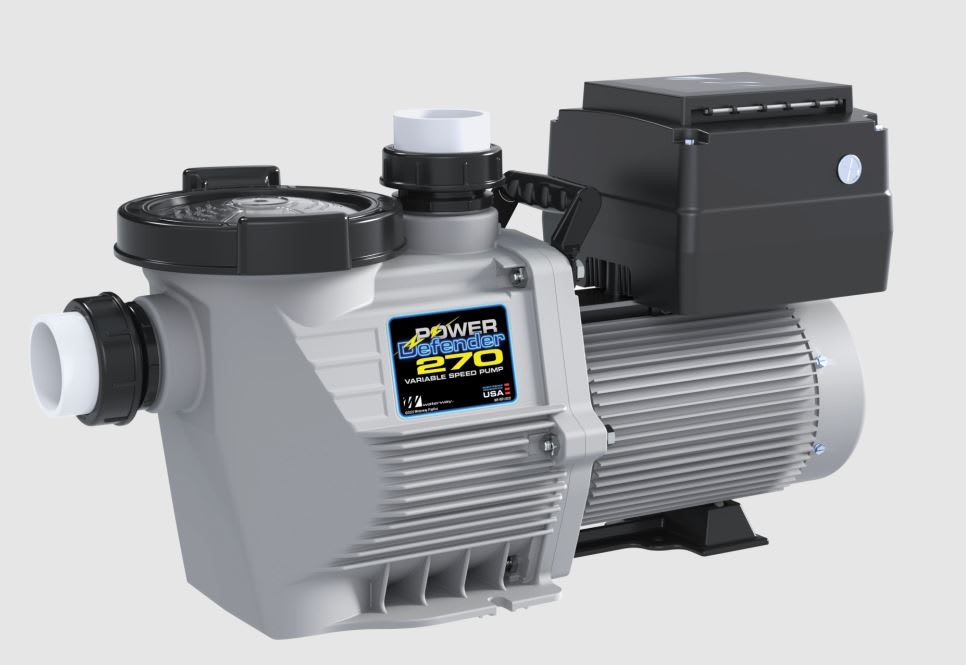

Pd-270 Power Defender Vsp,Cham Pion 2.7Hp 230V | PD-270
Maximize energy efficiency and operational control on your pool equipment pad with the Waterway Power Defender PD-270 Variable Speed Pool Pump. Engineered with a high-performance 2.7 total horsepower motor, this variable-speed pump replaces conventional energy-draining single-speed pumps, lowering operating electrical costs by up to 90% while running at ultra-quiet sound levels on low-RPM circulation schedules.
Powered by a totally enclosed fan-cooled permanent magnet synchronous motor, the unit eliminates heat buildup and protects internal components from ambient moisture, dirt, and summer pad exposure. The top-mounted programmable digital user interface allows you to program custom run schedules, cycle times, and RPM speeds tailored precisely for routine filtration, aggressive skimming, vacuuming, water feature operation, or spa booster jets. Featuring the high-capacity Champion wet-end volute with an oversized strainer basket, it delivers robust hydraulic flow rates while minimizing pressure drop and maintenance frequency.
Features
High-Efficiency Variable Speed Technology: Delivers up to 90% energy cost savings compared to traditional single-speed motors by circulating water at lower, optimized RPMs for everyday filtration.
Heavy-Duty 2.7 THP TEFC Motor: Built with a totally enclosed fan-cooled motor and permanent magnet architecture for cooler run temperatures, extended bearing life, and low operating decibels.
Integrated Programmable Controller: Features a top-mounted digital interface with customizable speed settings, internal real-time clock, and multi-speed scheduling capabilities.
High-Capacity Champion Wet End: Equipped with an extra-large strainer basket and clear see-through cam-lock lid that extends cleanout intervals and allows visual debris inspection.
Automation and Relay Compatible: Supports direct connection to third-party pool automation systems and external low-voltage controllers for coordinated equipment sequencing.
Rotatable Drive Interface: Keypad controller can be repositioned or rotated during installation to ensure easy display viewing and button access in tight plumbing quarters.
Specs
| Product Type | In-Ground Variable Speed Swimming Pool Pump |
| Total Horsepower (THP) | 2.7 THP |
| Operating Voltage | 230V AC, 60 Hz, Single Phase |
| Motor Type | Permanent Magnet TEFC (Totally Enclosed Fan Cooled) |
| Speed Range | 450 RPM to 3450 RPM |
| Port Plumbing Size | 2" Female Pipe Thread (NPT) / 2.5" Outer Union Threads |
| Basket Style | Extra-Large Champion Debris Basket with Clear Cam-Lock Lid |
| Efficiency Certification | Energy Star Certified |
| Thermal Protection | Integrated Automatic Electronic Thermal Overload |
| Manufacturer | Waterway Plastics |
| Part Number |
